| ब्रांड नाम: | GZAIR |
| मॉडल संख्या: | सीएच6 |
| एमओक्यू: | 10 |
| Price: | $29 - $169 |
| भुगतान की शर्तें: | , डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति करने की क्षमता: | प्रति माह 1000 टुकड़े |

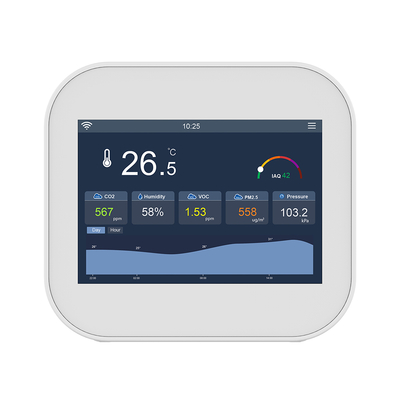

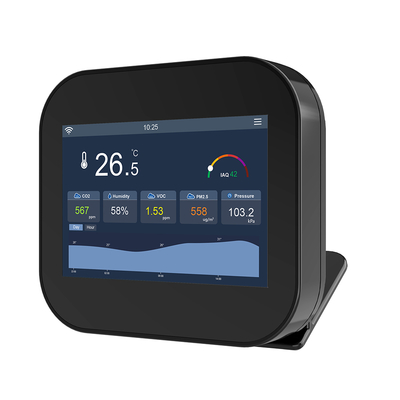

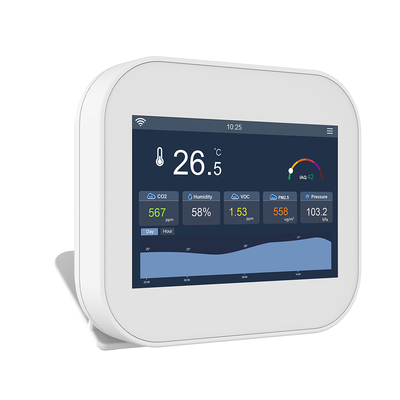

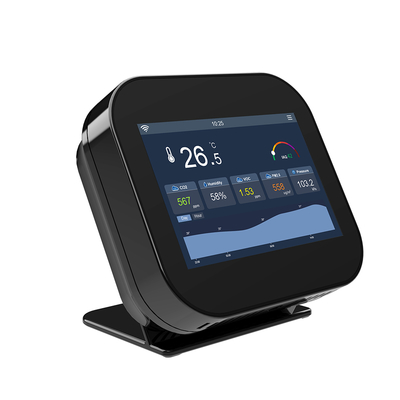

Touchscreen Smart IAQ Sensor for Homes, Offices & Classrooms
Elevate your indoor environment with the Touchscreen Smart IAQ Sensor, a sleek and reliable solution designed to monitor and improve the air quality in your most important spaces. Whether at home, in the office, or a classroom, this advanced sensor delivers real-time insights into the health of your air through a vibrant, easy-to-read touchscreen interface.
Equipped with high-precision sensors, this smart device continuously tracks CO₂, PM2.5, PM1.0, VOCs, Pressure, temperature, and humidity, offering a complete picture of your indoor air quality. With WiFi connectivity, it syncs with your mobile device or desktop, giving you remote access, data logging, and custom alerts when air quality drops below safe thresholds.
Key Features:
Interactive Touchscreen: Bright, color-coded display shows real-time air quality stats and trends
Multi-Pollutant Detection: Monitors CO₂, PM2.5/PM1.0, VOCs, Pressure, temperature, and humidity
WiFi-Enabled Remote Monitoring: View and manage data from anywhere via app or dashboard
Built-In Data Logging: Records historical air quality data for analysis and reporting
Smart Alerts: Customizable notifications help you take action when air quality changes
Modern, Compact Design: Fits seamlessly into homes, classrooms, and workspaces
Ideal For:
Healthy home and family environments
Productive, well-ventilated offices
Safe and comfortable learning spaces
Indoor air quality awareness and compliance
| Power Supply | USB Supply DC5V; 110-230VAC |
| Display | 320x480 pixels color TFT Capacitive touch |
| LoRaWAN | 868mHz/923mHZ/915mHZ |
| WiFi | IEEE 802.11b/g/n-2.4ghz |
| BACnet | MSTP/IP |
| Modbus | RTU/TCP |
| Security | WPA/WPA2 |
| Operating temperature | 1°C-85°C |
| Sensors | Co2: 0-5000ppm(±30ppm +3%MV) |
| Temperature:-10°C-70°C,(0.5 C 25 C) | |
| Humidity:0-100%,±3% VOC: 0-60.000 ppb | |
| Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%) | |
| Pressure: 50 to 115 kPa ±1 kPa | |
| Communication | WiFi-MQTT, modbus TCP LoRaWan(Option) |
| BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option) | |
| Data protocals | MQTT |
| Device Configuration Using HTTP Download OTA Updates Via HTTP | |
| NDIR life time | 15 Years |
| Standby power consumption | ≤0.5 W |
| Display dimensions | 76.5X52 mm(W/H) |
| Dimensions(W/H/D) | 96*86*32.5(mm) |
| Weight | ≤200g |
| Enclosure rating | IP 21 |
| Product material | PC+ ABS plastic |
