| ब्रांड नाम: | GZAIR |
| मॉडल संख्या: | CH60 |
| एमओक्यू: | 10 |
| Price: | $29 - $169 |
| भुगतान की शर्तें: | , डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति करने की क्षमता: | प्रति माह 1000 टुकड़े |

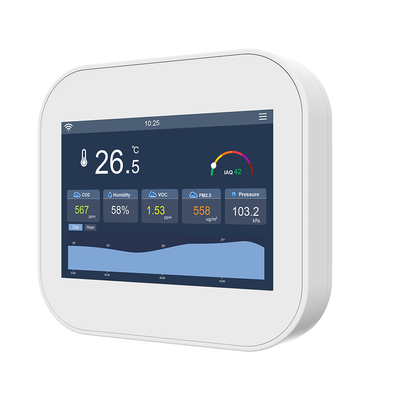

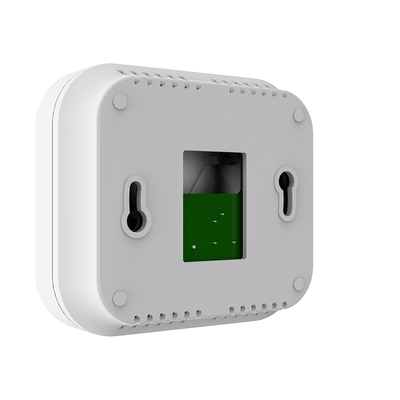

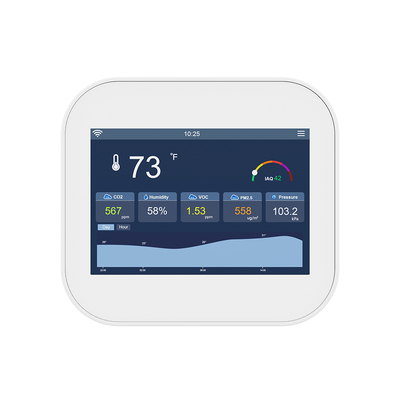

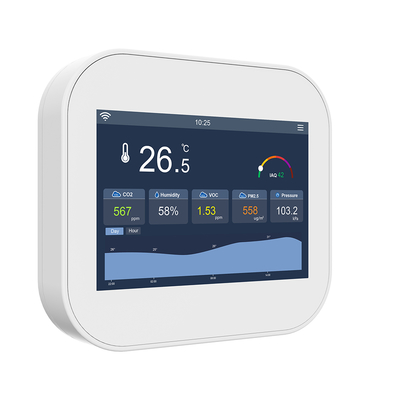

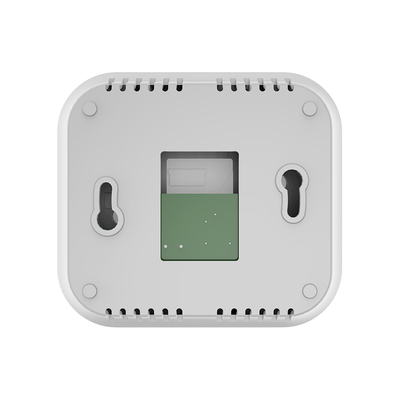

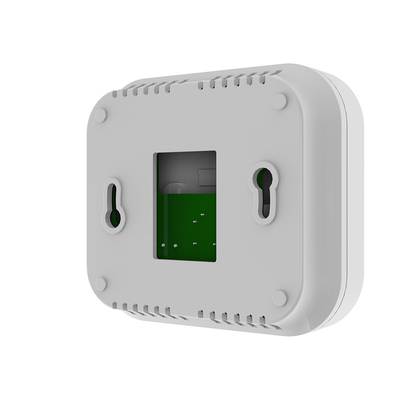

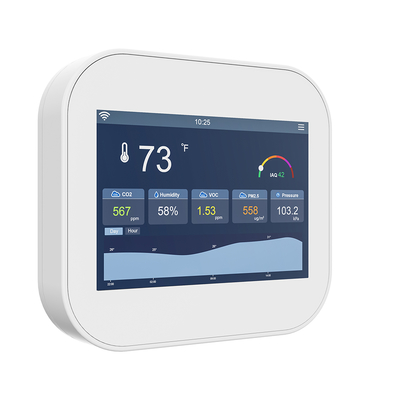

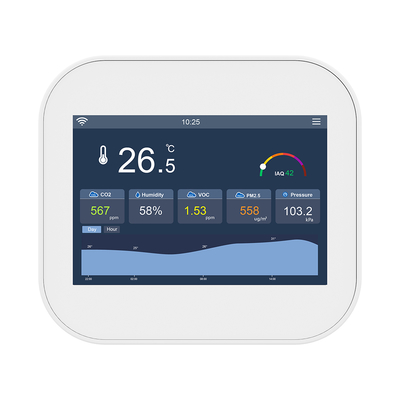

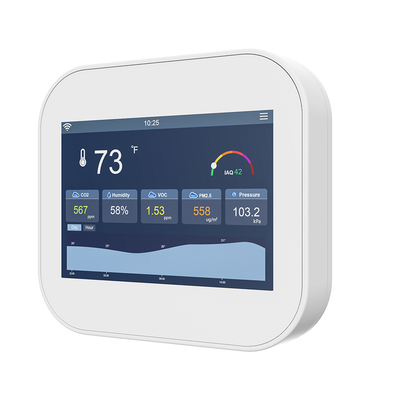

Touchscreen Smart Indoor Air Quality Sensor with WiFi, RS485 & LoRaWan Integration
Take full control of your indoor environment with the Touchscreen Smart Indoor Air Quality Sensor, designed for real-time precision monitoring and seamless integration into modern control systems. Equipped with a vivid color touchscreen and multi-protocol support — including WiFi, RS485 (Modbus), and LoRaWAN — this intelligent sensor delivers reliable, continuous data to help you maintain healthier air across a wide range of spaces.
Perfect for smart buildings, offices, schools, and industrial facilities, this device monitors CO₂, PM2.5, VOCs, Pressure, temperature, and humidity using high-accuracy sensors. The interactive touchscreen makes it easy to view live readings, set thresholds, and track environmental trends at a glance — while flexible connectivity ensures effortless integration into both local and cloud-based platforms.
Key Features:
Responsive Touchscreen Display: Real-time visualization of air quality data with intuitive navigation
Multi-Protocol Connectivity: Supports WiFi, RS485 (Modbus RTU), and LoRaWAN for flexible deployment
6-in-1 Environmental Monitoring: Accurately tracks CO₂, PM2.5, VOCs, Pressure, temperature, and humidity
Custom Alerts & Thresholds: Instant on-screen notifications and remote alerts for poor air quality events
Data Logging & Reporting: Local storage and export capabilities for long-term tracking and compliance
Robust Integration: Compatible with smart home systems, HVAC, BMS, SCADA, and remote dashboards
Energy-Efficient Design: Low-power operation suitable for continuous monitoring in any setting
Ideal Applications:
Commercial & residential smart buildings
Offices, classrooms, and libraries
Healthcare and wellness facilities
Manufacturing & warehouse environments
Remote monitoring sites via LoRaWAN
| Power Supply | 24VAC |
| Display | 320x480 pixels color TFT Capacitive touch |
| LoRaWAN | 868mHz/923mHZ/915mHZ |
| WiFi | IEEE 802.11b/g/n-2.4ghz |
| BACnet | MSTP/IP |
| Modbus | RTU/TCP |
| Security | WPA/WPA2 |
| Operating temperature | 1°C-85°C |
| Sensors | Co2: 0-5000ppm(±30ppm +3%MV) |
| Temperature:-10°C-70°C,(0.5 C 25 C) | |
| Humidity:0-100%,±3% VOC: 0-60.000 ppb | |
| Particulate Matter (PM1.5,PM2.5 PM4PM10): 4 KB0-100 μg/m3(±10μg/m3),100-1000(±10%) | |
| Pressure: 50 to 115 kPa ±1 kPa | |
| Communication | WiFi-MQTT, modbus TCP LoRaWan(Option) |
| BACnet MS/TP,IP(Option) Modbus RTU/TCP(Option) | |
| Data protocals | MQTT |
| Device Configuration Using HTTP Download OTA Updates Via HTTP | |
| NDIR life time | 15 Years |
| Standby power consumption | ≤0.5 W |
| Display dimensions | 76.5X52 mm(W/H) |
| Dimensions(W/H/D) | 96*86*32.5(mm) |
| Weight | ≤200g |
| Enclosure rating | IP 21 |
| Product material | PC+ ABS plastic |
